Instant Evaluation from Your Browser

The world’s only physical

hardware on a real-time cloud

evaluation platform

Save the hustle of procurement and set-up of evaluation kits with our library of 80+ labsfrom the world’s leading brands

Explore labs

Discover the Ideal IC for Your Design with Ease

All

Aerospace & Defense

Artificial Intelligence

Automotive

Clock and Timing

Communication and Computing Infrastructure

Communications and Enterprise

Consumer

Consumer Electronics

Industrial

IoT

Key Technologies

Low-Power

Microcontrollers and Microprocessors

Power and Energy

Sensors

Add filters for each category level to find the best lab of your need

Communication and Computing Infrastructure

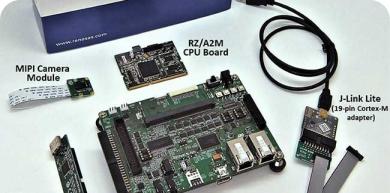

Face Recognition & 2D Barcode Type Detector Solution

The RZ/A2M Evaluation Kit is a best-in-class evaluation board kit used for evaluating the RZ/A2M high-speed, embedded AI-based, image processing microprocessors with Dynamically Reconfigurable Processor (DRP) technology. A MIPI camera module, display output board for display connection and an on-chip debugging emulator (Segger J-Link Lite) are included, so you can start evaluation immediately. The onboard device is the RZ/A2M (R7S921053VCBG: with DRP function, internal RAM 4MB) and evaluation of the DRP is possible.

Know More

Industrial

RX13T Motor Control Solution

The RX13T 32-bit MCU-based BLDC motor control solution uses Renesas’ IPS2200 inductive position sensor. The demo allows for switching between the IPS2200 rotor sensor and sensorless operation, showing the ability to achieve very smooth slower speeds due to the accurate position feedback of the inductive sensor.

Know More

Industrial

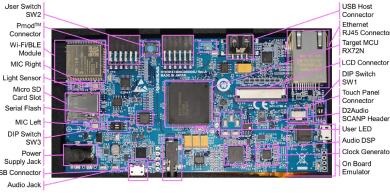

HMI solution board with high-end 32bit MCU RX Family

By using the Envision Kit with a 32-bit single-chip RX72N MCU on it, the demo can be operated via voice command, perform audio playback, and has a GUI display with WQVGA (480x272) on RTOS simultaneously. Renesas' original RXv3 core, which achieved a 5.90 CoreMark/MHz high score, delivers industry-leading performance, power efficiency and responsiveness. High CPU performance enables upgrade functionality even after product release and firmware can be downloaded from Renesas' website to program existing RX72N Envision Kits.

Know More

Automotive

Low-cost TFT instrument cluster with telematics

High-end automotive microcontrollers supporting basic or low-level 2D drawings are included on this board for the instrument cluster

Know More

Power and Energy

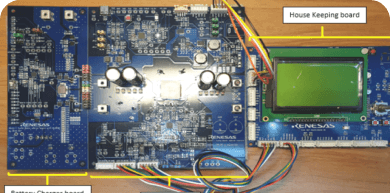

USB-PD with Turbo boost

This board supports USB Power Delivery (USB-PD) Specification Revision v3.0 and supports USB Type-C. The R9A02G011 USB-PD controller performs authentication to accept USB Type-C. It works with input voltages of 5V to 20V and output voltages of 35V/45W, which is beyond USB-PD output voltage level.

Know More

Industrial , Sensors

Multiwavelength Smoke Detector Reference Design

The JP252 is a multiwavelength optical smoke detector reference design built around the Renesas RL78/G22 microcontroller. It features an IR LED (850 nm), a Blue LED (470 nm), and a wideband photodiode to detect smoke using the principle of light scattering. By analyzing the response at different wavelengths, the system can distinguish between various smoke types, such as smoldering and flaming fires. The use of multiple scattering angles improves detection reliability and reduces false triggers. An integrated analog front-end amplifies the photodiode signal for accurate ADC sampling. The system also includes a red alarm LED, user control buttons, and a low-power design optimized for battery-powered smoke detection applications.

Know More

Artificial Intelligence , Microcontrollers and Microprocessors , Edge AI

RZ/V2N Based Edge AI Development Platform For Robotic Arm

The RZ/V2N from Renesas is a high-performance vision AI microprocessor (MPU) designed for edge applications that demand both advanced AI inference and low power consumption. Powered by Renesas’ proprietary DRP-AI3 accelerator delivering up to 15 TOPS, it is optimized for real-time vision processing in compact, energy-efficient systems. The key board features include: CPU Architecture: Quad Arm® Cortex®-A55 (1.8 GHz) + Arm® Cortex®-M33 (200 MHz). Image Processing: Integrated ISP with dual-channel MIPI® CSI-2® interfaces for dual-camera support. Connectivity: High-speed PCIe® and USB 3.2 for device expansion and system integration. Power Efficiency: Optimized for low power consumption, making it suitable for edge devices.

Know More

240W AC to DC USB-C PD 3.2 Adaptor

The 240W USB PD 3.2 EPR Power Supply Board delivers up to 48V/5A with high efficiency for modern portable devices. Compliant with USB PD 3.2 Extended Power Range, it ensures reliable power for demanding applications. Advanced Zero Voltage Switching (ZVS) tech reduces losses, achieving over 94% efficiency. Its compact, high-density design improves thermal performance and meets European USB Type-C charger regulations.

Know More

IoT , Automotive , Industrial , Aerospace & Defense , Communications and Enterprise , Consumer

SiT95316, SiT95317 Network Synchronizer, SiT95314, SiT95315, SiT95319 Jitter Cleaner and Clock Generator

The SiT95316EB Programmer is designed exclusively to configure and burn programmable SiT9514x Cascade Platform™ units.SiT95211 and SiT95316 are programmable clock generator parts with flexible input-output frequency translation options. They feature an ultra-low jitter performance DPLL that supports up to 4 Diff/8 Single Ended input clocks and 12 clock outputs. These parts can be derived from any of the four PLLs in a flexible manner.

Know More
